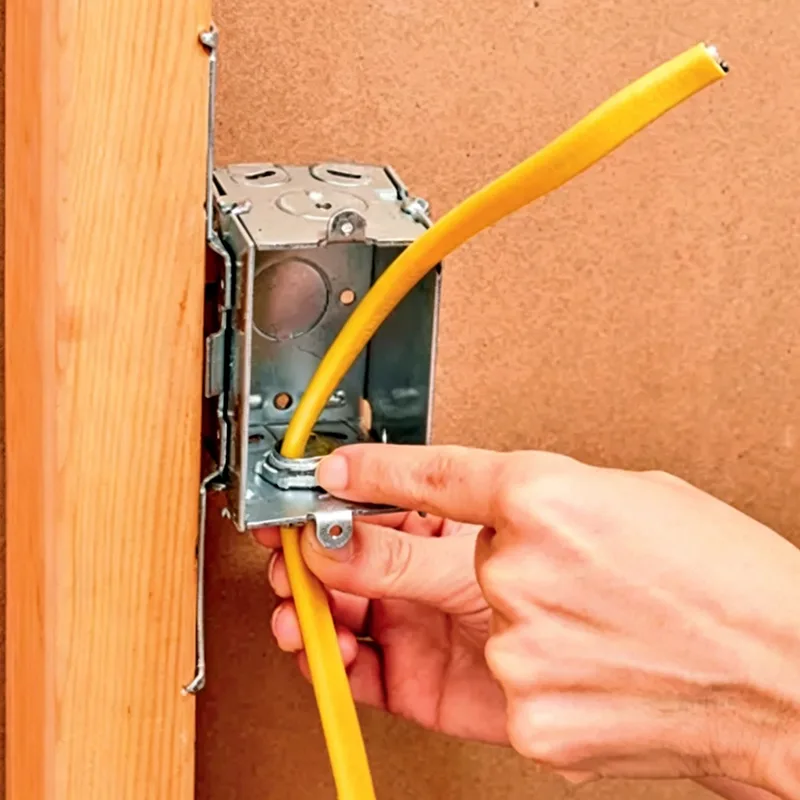

UL Standard Underground Feeder Cables

Underground power distribution demands exceptional safety, durability, and environmental adaptability. Conventional underground cables are prone to issues such as insulation aging, water ingress, and low-temperature brittleness, which can lead to circuit failures and safety hazards. Drawing on years of R&D and manufacturing experience, LINSHENG has optimized materials and processes to create compliant, durable UL Standard Underground Feeder Cables that effectively resolve the pain points associated with traditional products.

Quality Control and Core Technology

LINSHENG applies a comprehensive three-tier quality control system consisting of self-inspection, mutual inspection, and specialized inspection. Quality is monitored throughout the entire manufacturing process, from raw material procurement and processing to finished product inspection and packaging, helping ensure consistent product quality and reliable performance.

High-Conductivity Conductor Technology

LINSHENG UL Standard Underground Feeder Cables use 99.99% high-purity oxygen-free copper conductors with conductivity exceeding the 98% IACS standard. The high-conductivity conductor helps reduce voltage drop and operating temperature rise, supporting stable power transmission and improving overall circuit service life.

Robust Moisture-Resistant Insulation System

The cables feature specially engineered PVC insulation with high dielectric strength. The insulation helps protect the conductors against moisture and vapor penetration, reducing the risk of insulation degradation caused by water absorption and making the cables suitable for long-term direct-burial applications.

UV-Resistant and Weather-Hardy Outer Jacket

The outer jacket uses UV-resistant High-Density Polyethylene (HDPE) to provide protection against prolonged sunlight exposure, soil-related chemical corrosion, and mechanical stress during installation. This durable construction helps maintain stable cable performance in demanding outdoor and underground environments.

Technical Specifications

LINSHENG UL Standard Underground Feeder Cables are available in standardized specifications and common AWG sizes to meet the power distribution requirements of different projects. Technical parameters are verified according to applicable UL, ASTM, and NEC requirements, helping provide customers with consistent and reliable product specifications for project selection and engineering applications.

Laboratory-Tested Performance

All LINSHENG UL Standard Underground Feeder Cables undergo rigorous, full-scope testing in the brand's own laboratory. Performance metrics exceed industry standards, ensuring safe and stable long-term operation in complex underground environments.

1.720-Hour Long-Term Moisture Resistance Test

After continuous immersion in 70°C hot water, the product's water absorption rate is only 0.12 mg/mm²—far below the industry average of 0.25 mg/mm²—effectively preventing insulation aging and failure caused by moisture penetration.

2.Tensile and Breakage Performance Test

Tested according to ASTM D638 standards, the jacket tensile strength reaches 18.5 MPa (industry standard: 14 MPa) and elongation at break is 350% (industry standard: 250%). The cable exhibits excellent mechanical toughness, resisting cracking or damage during underground installation.

3.VW-1 Vertical Flame Test

After continuous flame exposure for 15 seconds, the cable self-extinguishes within 3 seconds without producing burning droplets. It far exceeds UL 1581 flame retardancy requirements, ensuring reliable fire safety.

4.-40°C Low-Temperature Bending Test

Following a 4-hour low-temperature conditioning period, the cable undergoes a mandrel bending test. It shows no cracks or fractures, demonstrating excellent low-temperature flexibility suitable for installation and long-term operation in extremely cold outdoor environments.

Real-World Application Case

Case Study 1: Residential Power System Upgrade in Minnesota

A residential community in Minnesota, USA, experiences winter temperatures as low as -35°C and consistently damp soil. Standard underground cables previously used in the area were prone to hardening and cracking in the cold, leading to frequent circuit failures. The project selected LINSHENG 12 AWG UF-B direct-burial cables.

Thanks to their superior low-temperature toughness and moisture resistance, the cables showed no cracking during winter installation and bending. After two years of operation, the circuits remain free from water ingress, aging, or short circuits, effectively resolving the issue of unstable power supply in extreme cold.

Case Study 2: California Coastal Landscape and Municipal Street Lighting Project

Municipal lighting projects along the California coast frequently face challenges such as salt spray corrosion and intense sunlight exposure; traditional cables are prone to aging and damage, resulting in high operation and maintenance costs. This project utilized LINSHENG 10 AWG and 8 AWG UF-B cables. Their UV-resistant jackets and corrosion-resistant insulation structures effectively withstand salt spray and degradation caused by sunlight. After three years of field operation, the cables remain in excellent condition regarding both appearance and performance, significantly reducing long-term maintenance costs.

FAQ

Q1: Can LINSHENG UL Standard Underground Feeder Cables be buried directly without conduit protection?

Yes. These are professional direct-burial underground feeder cables that fully comply with NEC Article 340 standards; they can be buried directly in the soil without the need for additional conduit protection. Their robust HDPE outer jackets and reinforced insulation structures resist soil pressure, moisture, and chemical corrosion, making them suitable for standard underground installation scenarios and effectively simplifying the construction process.

Q2: For which extreme environments are LINSHENG UF-B cables suitable?

These cables offer exceptional environmental adaptability, operating stably within a temperature range of -40°C to 90°C, making them suitable for both extreme cold and hot, humid conditions. They also feature excellent resistance to salt spray, acidic or alkaline soil corrosion, and UV degradation, allowing them to be used in various harsh outdoor direct-burial power supply scenarios, such as coastal areas, agricultural sites, industrial complexes, and municipal outdoor projects.

Q3: Do the product specifications and certifications meet North American market requirements?

Yes, they are fully compatible. LINSHENG UF-B cables hold official UL/cUL and CSA certifications as well as RoHS compliance certificates, fully aligning with the North American NEC electrical code and UL 83 industry standards. The product's AWG specifications, electrical performance, and safety metrics meet standard North American requirements, allowing for direct application in local residential, commercial, and municipal projects, and earning widespread recognition from local electricians and contractors.
