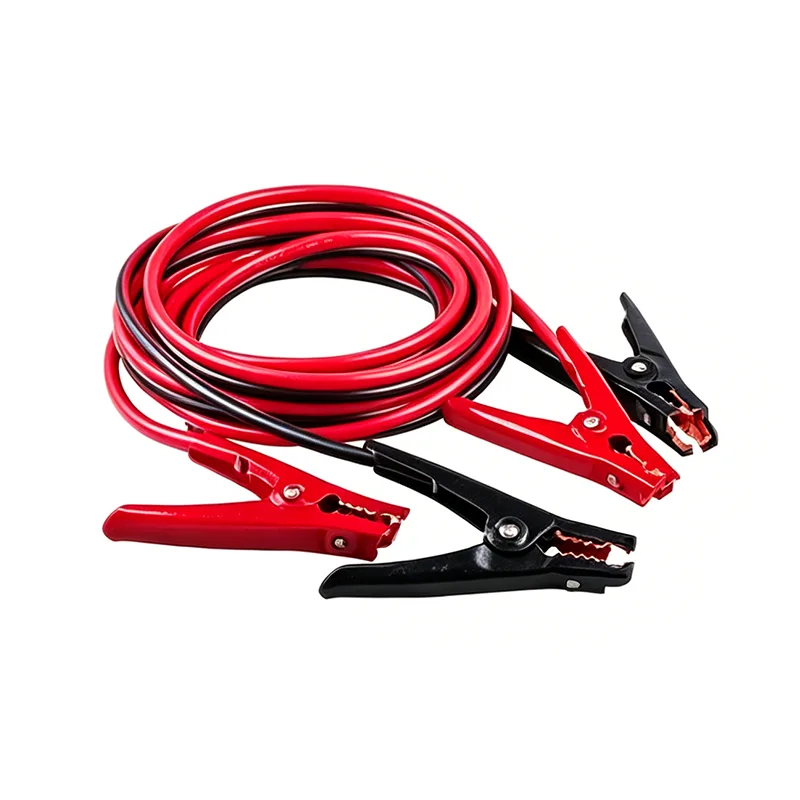

UL Standard PVC Automotive Battery Cables

These UL Standard PVC Automotive Battery Cables are specialized automotive cables that comply with international UL safety standards. They are optimized for harsh operating conditions—including high temperatures in the engine bay, chassis vibration, rain exposure, and oil contamination—far exceeding the suitability of standard consumer-grade cables.

Primarily used for connecting battery terminals (positive and negative), starters, and powering onboard electrical systems, they cover mainstream specifications from 8AWG to 24AWG. Suitable for passenger vehicles, construction machinery, and aftermarket modifications, they represent a highly reliable wiring solution for the global automotive aftermarket.

Product Design Advantages

LINSHENG UL Standard PVC Automotive Battery Cables focus on three core attributes: safety, durability, and ease of installation. Performance is optimized based on real-world feedback from automakers and repair professionals, with targeted enhancements in vibration resistance, heat resistance, and corrosion resistance. They feature multi-strand flexible stranded copper cores that absorb torsional and tensile forces during operation, preventing wire breakage. The PVC insulation layer is formed via integral extrusion, bonding tightly to the core to eliminate risks of water ingress and short circuits, thereby balancing stability with installation flexibility.

Material and Structural Features

1. High-Purity Copper Conductor

Made from 99.99% high-purity oxygen-free copper compliant with the ASTM B3 standard, ensuring low resistivity and high power transmission efficiency. A multi-strand fine-stranding process enhances flexibility, preventing core breakage during prolonged vibration or bending while ensuring stable, lossless current transmission. Multiple specifications are available to suit various automotive power loads.

2. Modified PVC Insulation Sheath

Utilizes automotive-grade flame-retardant modified PVC, offering excellent resistance to high temperatures, oil, and aging, as well as superior flame-retardant properties. It resists softening or deformation in high-temperature environments and avoids cracking or hardening in low-temperature conditions; the insulation thickness is uniform, effectively preventing electrical leakage and resisting signal interference.

3. Lightweight Structural Design

Eliminating redundant structures to align with automotive lightweighting trends, the cable features a compact outer diameter that saves wiring space. The smooth, wear-resistant outer sheath prevents damage during installation, significantly reducing the likelihood of future failures.

Real-World Application Cases

Case 1: Circuit Retrofitting for Light Commercial Vehicles

A commercial vehicle modification company previously used standard cables that would age and crack within 6–8 months under high-temperature and high-vibration conditions, frequently causing power loss and starting failures (with an 18% annual failure rate). After switching to LINSHENG UL Standard PVC Automotive Battery Cables, the vehicles operated stably for 30 months without any cable-related issues; circuit stability improved dramatically, and the company’s after-sales maintenance costs dropped by over 60%.

Case 2: Wiring for Outdoor Construction Vehicles

A construction company used small utility vehicles in damp, oily work sites; their original cables were prone to corrosion, short circuits, and poor contact. After installing this product, the equipment operated continuously for 24 months without cable failure—thanks to the product's superior moisture and corrosion resistance—effectively ensuring construction efficiency.

Performance Testing and Certification

1.Electrical Performance

100% factory inspection; rated voltage of 300V AC/DC with a maximum withstand of 600V AC; insulation resistance >1200 MΩ/km; ensures stable power transmission and excellent overload performance.

2.Mechanical Performance

Flex life of 3 million cycles at a minimum bending radius of 50mm; passed 8,000-cycle abrasion test; suitable for conditions involving long-term vehicle vibration and friction.

3.Environmental Performance

Operating temperature range of -35°C to +105°C; passed 168-hour immersion tests for oil and chemical agents; resistant to aging, moisture, and corrosion; compliant with UL 1430 and RoHS environmental standards.

Core Product Advantages

The entire product line holds UL international certification, making it suitable for global export markets. Modified PVC material addresses common issues found in traditional cables, such as high-temperature aging and poor oil resistance. High-purity copper cores reduce transmission losses and improve power supply efficiency. A flexible, lightweight design facilitates easy routing and fits within the complex spatial constraints of vehicle interiors. We support both standardized mass production and personalized customization to meet diverse application needs.

Production and Quality Control

Manufacturing takes place in a modern, standardized facility utilizing fully automated production lines and precision testing equipment, strictly adhering to the ISO 9001:2015 quality management system. Precision inspections are conducted across multiple stages, with complete records retained for every batch. Finished products undergo 100% electrical performance testing and safety sampling to ensure consistent quality and regulatory compliance.

Customization Services

We offer a full range of specifications (8AWG–24AWG), custom-length cutting, and jacket color customization. Value-added processing services—such as terminal crimping and sealed connector assembly—are available, eliminating the need for further processing by the customer and ensuring suitability for various automotive wiring scenarios.

Technical Specifications

Installation Precautions

Maintain a minimum bending radius of 50mm during installation to avoid cable damage from crushing or sharp bends. Strictly control pulling force during routing to prevent conductor deformation. Use UL-certified terminals for crimping to ensure secure connections and prevent overheating. Implement proper cable securing and protection measures in environments subject to vibration or corrosion.

Warranty and Technical Support

UL Standard PVC Automotive Battery Cables come with a 3-year official warranty covering manufacturing defects. Our professional team provides one-stop technical services—including product selection, installation guidance, application suitability advice, and troubleshooting—ensuring rapid response to customer needs.

FAQ

Q1: Are these UL Standard PVC Automotive Battery Cables suitable for new energy vehicles (NEVs)?

A1: Yes, they are suitable for low-voltage power systems in NEVs and are also compatible with battery and auxiliary circuit wiring in internal combustion engine vehicles and construction machinery, meeting mainstream low-voltage safety standards for NEVs. For high-voltage circuits, we recommend using specialized high-voltage cables; our entire product range is fully UL-certified, safe, and reliable.

Q2: What is the service life of the cable in high-temperature engine compartment environments?

A2: Made from high-temperature-resistant modified PVC, the cables are designed for long-term operation in environments reaching 105°C. Field testing confirms a service life of over five years under standard automotive operating conditions—two to three times that of ordinary PVC cables—effectively resisting issues such as high-temperature aging and insulation cracking.

Q3: Do you offer custom lengths and terminal processing?

A3: Yes. We provide one-stop customization services, including cutting to length, color customization, terminal crimping, and connector assembly. These solutions are tailored to the wiring requirements of various vehicle models, helping customers reduce secondary processing costs.
