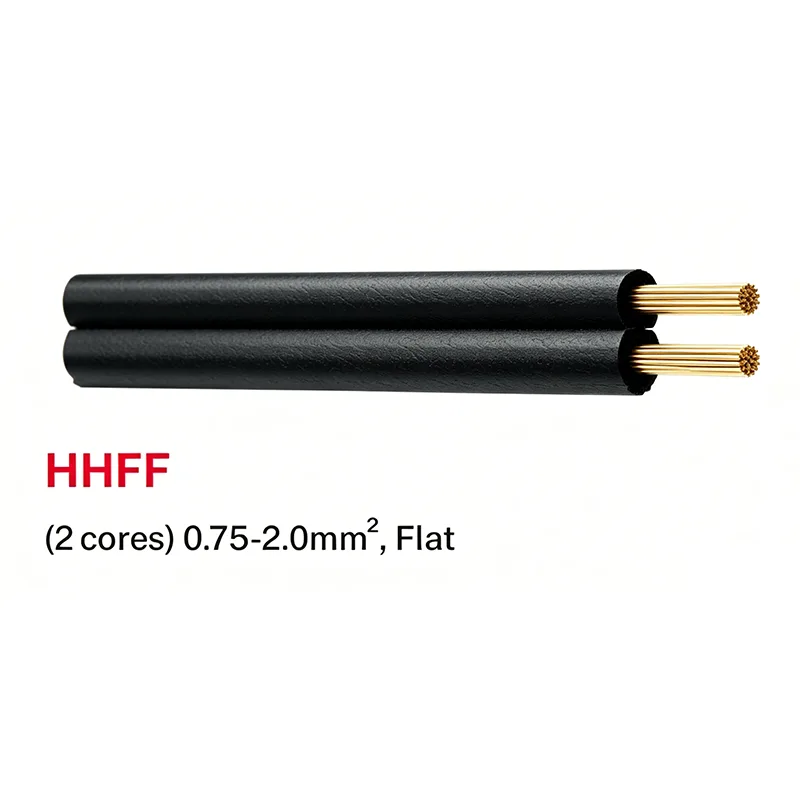

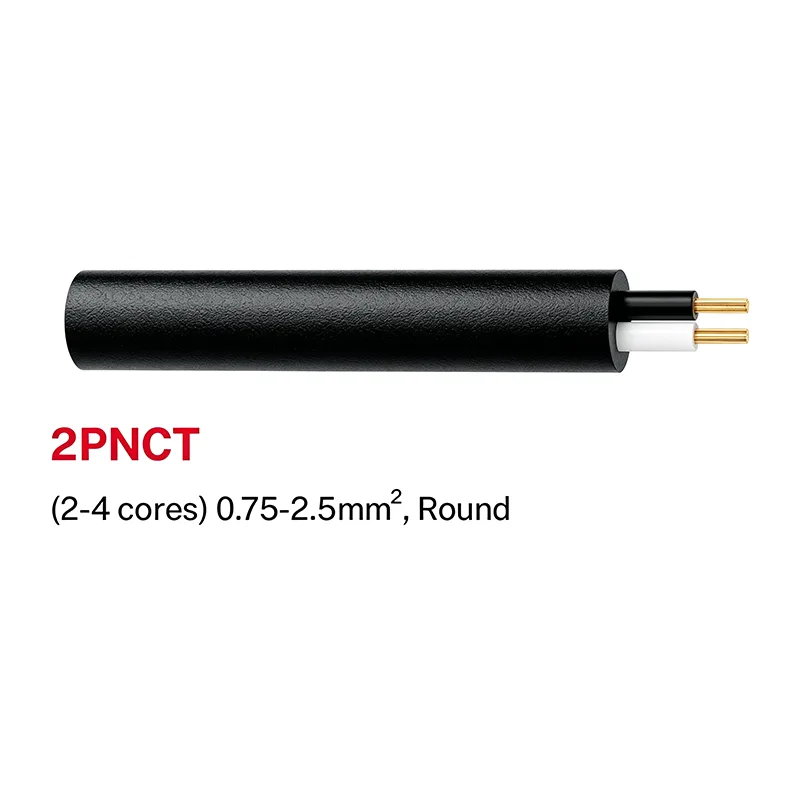

JP Standard Rubber Insulated Flexible Cords

Designed for applications requiring high flexibility, durability, and safety, LINSHENG JP Standard Rubber Insulated Flexible Cords overcome the limitations of traditional PVC cables—such as cracking at low temperatures, poor flexibility, and weak corrosion resistance. Backed by proven material formulations and precision manufacturing processes, they operate reliably in extreme environments, making them an ideal wiring solution for high-end equipment adhering to Japanese industry standards.

Core Competitive Advantages

1.Exceptional Flexibility

Features IEC 60228 Class 5/6 ultra-fine stranded oxygen-free copper conductors with a multi-layer concentric stranding structure. Flexibility is 30% higher : than standard PVC cables and 10% higher than conventional rubber cables, making them suitable for equipment involving frequent bending.

2. Wide Temperature Stability

Operates within a temperature range of -40°C to +90°C and withstands short-circuit temperatures of up to 250°C (for 5 seconds), effectively eliminating issues like low-temperature cracking and high-temperature aging failures common in standard cables.

3. Superior Weather and Corrosion Resistance

Proprietary rubber formulations provide excellent resistance to oil, ozone, and UV radiation. Performance degradation remains far below industry standards after IRM902 oil resistance testing and 720-hour UV aging tests.

4.Safety, Eco-friendliness, and Flame Retardancy

Available in low-smoke, halogen-free, flame-retardant versions featuring self-extinguishing properties. They produce minimal smoke and no harmful gases during combustion, complying with RoHS and REACH environmental regulations.

5.Authoritative Certification

Fully compliant with Japanese Industrial Standards (JIS) and certified by international bodies such as CE and ISO9001; features standardized end-to-end quality inspection, ensuring compliant and controllable quality.

Product Specifications and Technical Parameters

1. Basic Structural Parameters

2. Electrical and Mechanical Properties

3. Comprehensive Specification Coverage

As a professional manufacturer, LINSHENG offers customization across a wide range of specifications to suit diverse installation scenarios:

Manufacturing Process and Quality Control System

1. Standardized Production Process

Precision control throughout the entire process: High-purity copper rod drawing → Constant-temperature annealing → Precision stranding → Rubber compound mixing → High-temperature extrusion of insulation and sheathing → Continuous steam vulcanization → Cooling and shaping → Finished product inspection.

All process parameters are monitored in real-time—with precise control over drawing speed, annealing temperature, stranding tension, and vulcanization temperature—to eliminate performance variations caused by process fluctuations.

2. End-to-End Quality Inspection System

- Raw Material Inspection: Strict verification of copper wire resistivity and tensile properties, as well as rubber viscosity and vulcanization characteristics; 100% raw material pass rate.

- In-Process Monitoring: Real-time monitoring of conductor stranding uniformity, insulation thickness deviation, and cable concentricity to ensure high production precision.

- Finished Product Inspection: Comprehensive testing covering withstand voltage, insulation resistance, tensile strength, low-temperature bending, high-temperature aging, and flame retardancy; zero-defect delivery.

Real-World Industrial Application Cases

Case 1: Japanese Automotive Intelligent Assembly Line Project

Power supply for robotic arms at a Japanese automotive parts manufacturer; requirements included resistance to high-frequency bending and oil contamination, as well as long-term stable operation. The original PVC cables had a service life of only eight months and were prone to insulation cracking and conductor breakage.

This project adopted LINSHENG 4×1.5mm² JP Standard Rubber Insulated Flexible Cords. After 24 consecutive months of high-frequency operation, the cables showed no signs of insulation aging, conductor breakage, or electrical faults. They are perfectly suited for workshop environments involving oil contamination and high-flexing conditions, significantly enhancing equipment operational stability.

Case Study 2: Outdoor Stage Performance Cabling Project

For cross-border touring stage lighting and audio cabling, cables must be lightweight, ultra-flexible, resistant to repeated winding and unwinding, and capable of withstanding outdoor wind, rain, and UV exposure. The project utilized LINSHENG 2×1.0mm² halogen-free flexible cables.

After more than 50 cycles of assembly and disassembly, the cable jackets showed no wear and the conductors remained undamaged. They maintained excellent flexibility even in low-temperature environments (-30°C), effectively solving the common issues of easy damage and short service life associated with standard stage cables.

FAQ

Q1: What are the key differences between LINSHENG JP Standard Rubber Insulated Flexible Cords and standard PVC flexible cables?

The core differences lie in overall performance: regarding temperature resistance, PVC cables are limited to a range of -20°C to +70°C, whereas this product operates stably between -40°C and +90°C. In terms of durability and flexibility, the bending lifespan is double that of PVC cables, and abrasion resistance is superior.

Regarding weather and corrosion resistance, the rubber material effectively resists oil, corrosion, and UV-induced aging, whereas PVC is prone to becoming brittle, cracking, and corroding. From a safety perspective, the halogen-free, low-smoke version offers far superior flame-retardant safety compared to standard PVC products.

Q2: Can LINSHENG Japanese-standard flexible rubber cables be customized, and are full qualification documents available?

We support comprehensive customization, including services such as special conductor structures, proprietary rubber formulations, custom cable colors, and cut-to-length services. We also provide a full set of compliance documents—including JIS standard certification, ISO9001 quality certificates, CE and RoHS compliance reports, and finished product inspection reports—to meet requirements for project acceptance, customs clearance, and engineering filing.

Q3: What precautions should be taken regarding the installation and maintenance of this series of flexible rubber cables?

During installation, the minimum bending radius must be at least four times the cable's outer diameter; in low-temperature environments below -15°C, the cable requires preheating to prevent insulation cracking. Specialized wire-stripping tools and crimping terminals must be used to avoid scratching the conductor.

Recommended routine maintenance includes monthly visual inspections, quarterly tightening of terminals, and annual insulation resistance testing; additionally, avoiding prolonged contact with highly corrosive chemicals helps effectively extend the product's service life.

Product Services and After-Sales Support

Customers may request samples for testing free of charge; standard products are delivered within 3–5 business days, while custom products are delivered within 10–15 business days. Products come with a standard 24-month warranty, with options for extended coverage available to bulk customers.

Comprehensive support includes 24-hour online technical consultation, on-site installation guidance, and troubleshooting services. Technical manuals, safety data sheets, and test reports are provided with the shipment, ensuring a transparent and manageable service experience.
