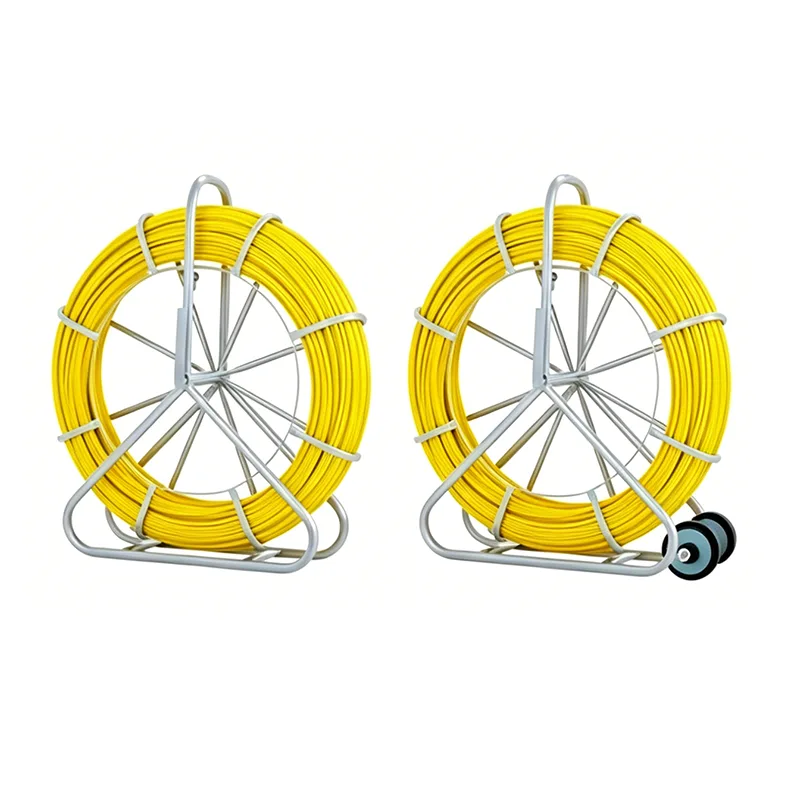

EU Standard Duct Rodders

LINSHENG EU Standard Duct Rodders are specifically customized for European electrical installation standards, addressing industry pain points such as easy breakage, loose connections, poor weather resistance, and insufficient safety of traditional conduit rods. Based on years of front-line construction experience and continuous updates to European standard technology, the products abandon ordinary fiberglass materials, employing an upgraded composite formula and ergonomic design to easily handle long-distance, multi-bend, and extreme environment conduit wiring operations.

Available in a full range of specifications, with diameters from 6mm to 12mm and lengths from 25m to 100m, they are widely used in power engineering, building electrification, communication pipelines, municipal engineering, and other scenarios, fully meeting high-end EU construction standards.

Core Design and Advanced Technology

1. High-End Composite Material Structure

LINSHENG EU Standard Duct Rodders utilize aerospace-grade glass fiber reinforced polymer substrate, with a high-purity glass fiber content of 70%-75%. Antistatic, flame-retardant, and UV-resistant additives are added, balancing high strength and high toughness. The product has a tensile strength ≥1200N, capable of withstanding long-distance tensile construction; it can withstand over 500 repeated bends without cracking, delamination, or fatigue damage. The high-density protective coating on the surface resists outdoor UV erosion, chemical corrosion, and rainwater penetration, ensuring long-lasting and stable performance in harsh environments.

2. Patented Three-Point Locking Joint System

Addressing the problem of joint detachment during construction, LINSHENG has independently developed a universal three-point quick-locking joint, compatible with all product specifications. It supports quick one-handed assembly and disassembly, with a single connection taking no more than 3 seconds.

The built-in alignment guide structure prevents pipe twisting, bending, and jamming. Once locked, it can withstand full-load tensile force, completely solving the problem of joint detachment during long-distance, large-angle construction, significantly improving construction efficiency and operational safety.

3. Extreme Environment Adaptation Technology

EU Standard Duct Rodders have passed IEC professional environmental testing, with an operating temperature range of -40℃ to +120℃. They remain resistant to brittleness at low temperatures and deformation at high temperatures. Insulation resistance > 10¹²Ω, with a UL94 V-0 flame retardant rating and 10kV high-voltage insulation capability, they are safe for use in wiring around electrical equipment and fully comply with EU electrical construction safety standards.

Complete Product Specifications and Configurations

1.Core Technical Parameters

2. Diverse Product Configurations

To adapt to various engineering scenarios, LINSHENG offers multiple customized specifications: diameters of 6mm/8mm/10mm/12mm; lengths of 25m/50m/100m in reel packaging; standard colors are standard yellow and high-visibility orange; connectors include standard locking, swivel joints, and pull rings to meet various cable laying and conduit threading needs.

Real-world Engineering Application Case Study

Case Study: Swedish Outdoor Substation Supporting Pipeline Project

A municipal substation expansion project in northern Sweden required long-term outdoor pipeline installation, facing temperatures ranging from -30°C to 38°C and intense UV radiation year-round. The construction team selected LINSHENG's UV-resistant and high-temperature resistant custom-designed conduit inserters.

After two years of continuous outdoor use, the conduit showed no signs of embrittlement, fading, or strength reduction, successfully completing the installation of a 120mm² large-section power cable within a 60-meter complex conduit. The product demonstrated stable insulation performance under alternating high and low temperature conditions, eliminating the risk of leakage and tool damage, and meeting the stringent outdoor construction standards of Northern Europe.

Production Capabilities and Quality Compliance

LINSHENG boasts an intelligent, standardized production base equipped with fully automated winding equipment, a constant-temperature curing system, and laser precision testing devices. From raw material warehousing and processing to finished product delivery, the entire process is digitally controlled. All products are certified by CE, RoHS, REACH, and ISO9001:2015 quality management systems and comply with the IEC 61386-1 EU pipeline system standard.

In terms of quality control, each batch of products undergoes 100% insulation testing, and mechanical fatigue testing is conducted on samples. The entire production process is traceable. The brand adheres to green production, employing energy-saving processes and recyclable packaging to achieve low-carbon manufacturing. Thanks to its stable quality, the products are exported to more than 30 countries and regions in Europe, North America, and Southeast Asia, replacing high-end imported European-style conduit ducts.

FAQ

Q1: Are LINSHENG EU Standard Duct Rodders compatible with all European standard pipes?

Fully compatible. The products are developed and manufactured strictly according to EU pipe construction standards. Pipe diameter tolerances, pipe body toughness, and joint sizes are all matched to mainstream European PVC and metal pipes. Multiple specifications and models cover conventional pipes from 16mm to 110mm, suitable for most indoor and outdoor electrical and communication cabling scenarios in Europe.

Q2: How to maintain the conduit duct and extend its service life?

After each installation, clean the surface of the pipe to remove dust and oil, and check for loose or worn joints. Store in a dry, ventilated, and temperature-controlled environment, avoiding prolonged compression and direct sunlight. Do not use excessive force during installation and avoid sharp bends. With proper use and maintenance, the product's lifespan can reach 3-5 years, 25% longer than ordinary products.

Q3: Does the product support customized specifications and accessories for special projects?

Customization is supported. LINSHENG can customize products with special lengths, large diameters, and high-temperature resistance for special scenarios such as ultra-long distances, ultra-low temperatures, and high loads. A full range of accessories, including dedicated reels, anti-slip handles, adapters, traction devices, and cleaning and maintenance kits, are also available to meet individual project needs.
