AS/NZS Standard Plastic Fish Tapes

Traditional fiberglass and metal fish tapes suffer from significant drawbacks: fiberglass is prone to snapping after repeated bending, while metal tapes are heavy, susceptible to corrosion, and likely to scratch conduits—leading to low installation efficiency, frequent tool replacement, and increased project costs.

To address these pain points, LINSHENG developed its AS/NZS Standard Plastic Fish Tapes using HDPE, the result of years of field testing and material refinement. Unlike standard medium-density PE products on the market, this product strictly adheres to local conduit installation specifications, serving as a highly cost-effective and reliable tool for electrical projects in the region.

Core Material and Manufacturing Advantages

Manufactured in a standardized, modern 15,000 m² facility in China, these tapes use high-purity HDPE (density: 0.950 g/cm³) and are produced via an integrated continuous extrusion process, eliminating the structural weak points found in spliced products. Mechanical properties are optimized through polymer chain orientation technology, while real-time ultrasonic thickness monitoring ensures dimensional tolerances remain within ±0.1 mm, guaranteeing consistent quality across every batch.

The product's core performance metrics far exceed industry averages: tensile strength reaches 28 MPa, elongation at break is ≥350%, flexural modulus is 850–950 MPa, and Charpy impact strength is 45 kJ/m². Operates stably in temperatures ranging from -20°C to +80°C and resists common construction solvents; shows no swelling, softening, or aging even with prolonged exposure.

Technical Specifications Comparison

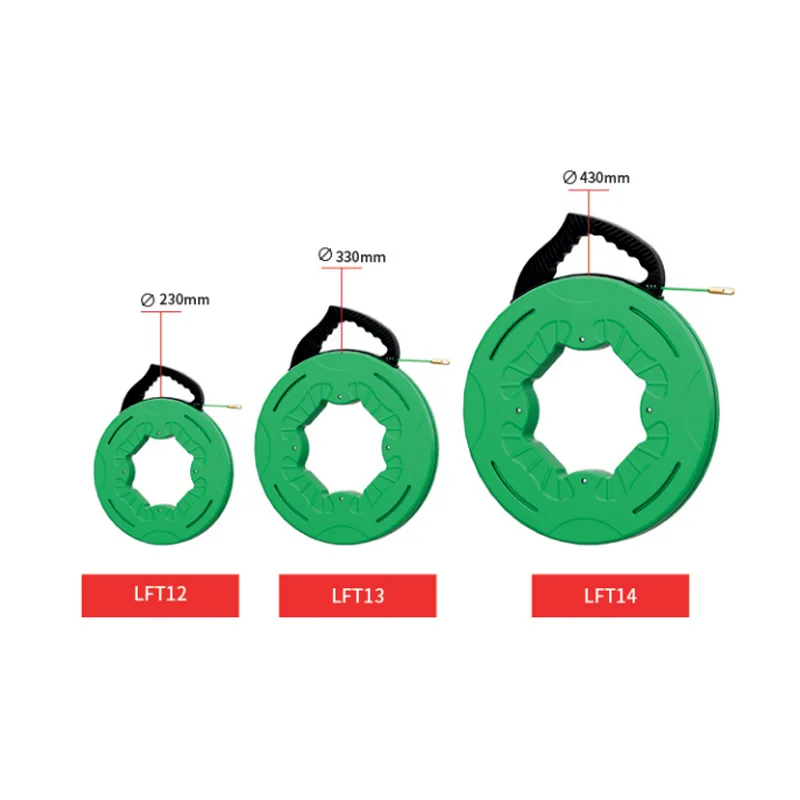

Product Lineup

LINSHENG offers three standard cable pulling rod models designed for different residential, commercial, and industrial installation requirements, along with flexible customization services for special projects.

LS-3015 (15m × 3mm)

This compact and flexible model is suitable for short-distance residential wiring, home renovations, and general electrical installation projects in Australia. Its smaller diameter makes it easier to handle in relatively simple conduit layouts.

LS-3030 (30m × 4mm)

Designed as a general-purpose model, the LS-3030 provides a practical balance of strength and flexibility for commercial buildings, offices, retail stores, and routine electrical wiring projects.

LS-3050 (50m × 5mm)

The heavy-duty reinforced LS-3050 is designed for long-distance vertical conduit runs and complex industrial piping layouts. Its larger diameter and reinforced structure provide greater mechanical strength for demanding cable-pulling applications.

Customization Services

For projects requiring non-standard specifications, LINSHENG supports custom lengths and diameters according to specific conduit layouts, installation distances, and application requirements.

User-Centric Design Features

Details optimized based on feedback from Australian electricians: Integrated reinforced connectors eliminate the detachment issues common with traditional threaded joints; a highly smooth surface minimizes friction and wear between the conduit and the cable during pulling; an automatic retraction mechanism ensures smooth, snag-free storage; and an ergonomic, non-slip handle reduces hand fatigue during extended use. The product is non-toxic, eco-friendly, recyclable, and flame-retardant, complying with RoHS standards and local Australian construction safety regulations.

Quality Certification

The AS/NZS Standard Plastic Fish Tapes hold SAA safety certification (compliant with AS/NZS 3000 electrical standards), ISO9001 quality management system certification, and RoHS environmental certification, fully meeting market entry and construction code requirements for Australia and New Zealand.

Performance and Environmental Testing

Tensile Strength Test

LINSHENG cable pulling rods are tested according to AS 1145.2 requirements to verify mechanical strength and load-bearing performance. The 4mm specification achieves an average breaking load of 450N, with a stated safety factor of 3.5 times the working load, providing reliable resistance to breakage during heavy-duty cable pulling operations.

Flex Life Test

The rods withstand 5,000 repeated 90° bending cycles without cracking, deformation, or noticeable performance degradation. This bending durability makes them suitable for high-frequency installation work involving repeated handling and complex conduit routing.

Extreme Environment Test

To evaluate dimensional stability and environmental adaptability, the rods undergo 100 thermal cycles from -20°C to +80°C. After testing, the products maintain stable dimensions and performance, supporting use in demanding outdoor and factory environments with significant temperature variations.

Chemical Resistance Test

The rods are immersed in commonly used construction solvents for 24 hours to evaluate chemical resistance. No significant swelling, softening, or structural damage is observed after testing, demonstrating good resistance to common chemical exposure encountered during construction and installation work.

Real-World Application Cases

Case 1: High-rise Commercial Cabling Project in Brisbane

1. Project Background: A 28-story office building in Brisbane required the installation of extensive power and network cabling through 45-meter vertical conduits with multiple bends; traditional threading tools proved difficult to use and highly inefficient.

2. Product Used: LINSHENG LS-3050 50m x 5mm Heavy-duty Plastic Fish Tape.

3. Application Results: Thanks to its high flexibility and strong tensile strength, the product easily navigated long conduits with multiple bends, successfully resolving the threading challenge. Overall cabling efficiency increased by 42%; the tool experienced zero failures or damage throughout the 7-month construction period, significantly reducing the workload for electricians and enabling the electrical cabling phase to be completed 10 days ahead of schedule.

Case 2: Renovation Project for Older Homes in Auckland

1. Project Background: A renovation project for multiple older residential units in Auckland, New Zealand, characterized by irregular conduit layouts and cramped working spaces; traditional rigid fish tapes struggled to navigate the paths and risked damaging existing conduits and cables.

2. Product Used: LINSHENG LS-3015 15m x 3mm Lightweight Flexible Fish Tape.

3. Application Results: The product's ultra-small bending radius and smooth surface made it perfectly suited for the complex, narrow-diameter conduits found in older buildings, achieving zero damage to existing lines during installation. Wiring time for single-family homes was reduced by 28%; the lightweight, non-slip design earned high praise from local installation teams, leading to its designation as the specified wiring tool for subsequent large-scale renovation projects.

FAQ

Q1: Do LINSHENG AS/NZS Standard Plastic Fish Tapes fully comply with Australian and New Zealand electrical installation standards?

Yes. The entire LINSHENG fish tape series is manufactured in strict accordance with the AS/NZS 3000 electrical installation standard and holds official SAA certification. Product performance, safety metrics, and specifications meet all market entry and construction requirements for Australia and New Zealand, making them safe and legal for use in local residential, commercial, and industrial electrical projects.

Q2: What is the service life and warranty policy for the AS/NZS Standard Plastic Fish Tapes?

Utilizing high-purity HDPE material and an integrated molding process, the products offer excellent resistance to aging and fatigue, with a normal service life of over five years under standard operating conditions. The brand offers a 12-month official warranty; free replacements and technical support are provided for performance failures or defects not caused by user error, with 24-hour customer service response.

Q3: Do you support customization (OEM/ODM) and bulk supply services?

As a professional manufacturer of electrical tools, we offer comprehensive OEM/ODM services, including logo printing, size adjustments, and custom packaging. Standard models are always in stock for rapid global shipping. Custom orders have a minimum order quantity (MOQ) of 500 units, and we provide stable bulk supply solutions for long-term partners.

Brand Strength and Service Guarantee

LINSHENG has specialized in the R&D and manufacturing of electrical wiring tools for over a decade, delivering high-quality products to global customers through standardized factory systems and mature quality control processes. We strictly adhere to authoritative EEAT 2.0 standards, maintaining rigorous quality control across the entire workflow—from raw material intake and in-process inspections to final product testing—and utilizing a comprehensive batch traceability system to ensure consistent product quality.

We provide one-stop services, including pre-sales consultation, product selection guidance, custom development, and after-sales technical support. Qualified clients may apply for free samples for field testing. Backed by a global logistics network, we fully meet the procurement needs of engineering contractors and tool distributors in Australia, New Zealand, and around the world.
